RapidIdentity Cloud Product Guide

Catalog

The Catalog interface displays the collection of Entitlements that administrators define and make available for authorized users to request. Additionally, this section allows administrators to create and manage entitlements.

Users can only request those entitlements that show available to request. All entitlements display for administrators.

Entitlement Status Symbol

Symbol Function


The "eye" symbol indicates that the entitlement is active.


The "strikethrough eye" indicates that the entitlement is inactive.

The checkbox allows an entitlement to be selected. The buttons appearing in the footer depend on how many entitlements are selected at a given time. If one entitlement is selected, the footer will display the ability to Request, Delete or Clone the selected entitlement. If two or more entitlements are selected, the footer will display the ability to Request or Delete the selected entitlements.

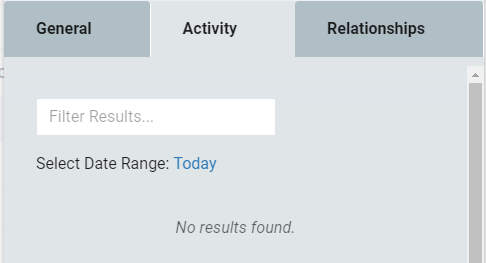

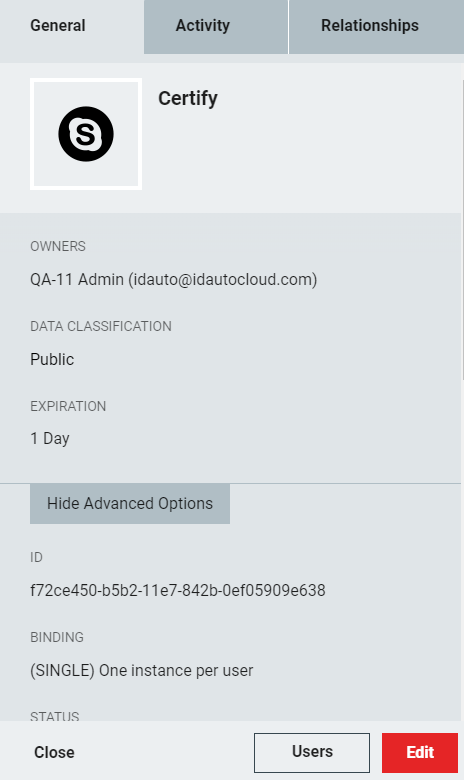

Entitlement details can be viewed by clicking Details. The details section contains three tabs: General , Activity, and Relationships.

General

Initially, only the owner, data classification, and expiration display in the General tab. Administrators can click the Show Advanced Options to display the fields available to edit in relation to the organization's environment when creating a new entitlement. The table below details the fields available to edit and a description.

Table 37. Detail General Tab

Field Name

Description

Icon

Icon to associate with the entitlement when it is displayed in the UI. It can be uploaded from the user's local machine or selected from RapidIdentity's existing catalog of icons.

Name

Descriptive display name for the entitlement.

Description

A brief description can be entered for the entitlement, but is not required.

Owners

Displays the owner(s) of the entitlement.

Note

An entitlement owner is the primary contact for the entitlement and is responsible for Certification of entitlements or Extension of those that are about to expire. More than one entitlement owner can be assigned.

Data Classification

The Data Classification associated with the Entitlement. This serves as a label that describes the data associated with the entitlement.

Note

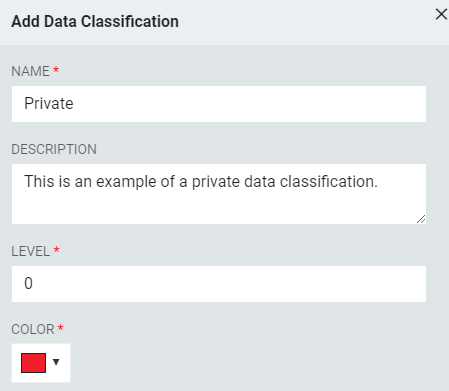

If no data classifications are present, select Create New and enter information for the Name, Description, Level, and Color fields.

Example:


Expiration

Defines when a granted entitlement will expire if not re-certified or extended by an Owner of the entitlement. To define the resource as never expiring, None can be selected.

Click the desired option and, if selecting days or date, click the listed value to configure.

Note

Options available to select from:

  • None

  • Time-based

  • Campaign-based

Time-based

If selected, the entitlement will expire in an indicated time (years, months, weeks, days, hours, minutes) from the time the entitlement is approved.

Note

The RapidIdentity jobs that run to expire entitlements run on a preset time interval. The exact time expected for an entitlement to expire may differ slightly from its actual expiration time.

Campaign-based

If selected, the entitlement expires on the selected date every year.

Binding

Number of instances per user allowed and whether they are bound, un-bound, single, or composite.

  • (SINGLE) One instance per user that can be requested, revoked, or can expire. A user can be associated to one instance of a single-bound entitlement at a given time and cannot request it again until it expires or is revoked.

    Example: Administrator Role, Help Desk Role, Access to Application, Splunk administrator for 4 hours

  • (MULTI_BOUND) Multiple instances per user. These are similar to single-bound entitlements, except the user can be associated to more than one multi-bound entitlement at any given time.

    Example: Scoped roles based on context Administrator for specific department

  • (MULTI_UNBOUND) Multiple instances per user that are not permanently tied to the user. These can be requested, but not revoked. Unbound entitlements are only associated with the user until the associated workflow completes.

    Example: Request log file, submit PTO request

  • (COMPOSITE) One instance per user. When a COMPOSITE entitlement is granted, associated entitlements will also be automatically requested for the user. The approver still has the option to Deny the associated entitlement request.

    Example: Grouping of Single Entitlement Bindings

Note

After selecting a binding, it is fixed. If an error occurs, the entitlement must be removed completely and the process to create a new entitlement must be reinitiated.

Status

Can be set to Active or Inactive.

Access Control

Required Field - Used to determine if attributes or roles will control access to the entitlement.

If set to Attribute-based, the Attribute ACL needs to be defined. This would be the list of attributes in which will be allowed access to the entitlement.

Note

This can be set to None.

Included Roles

Listed as a Required Field - This field determines the role(s) who will have access to this entitlement.

Action on this section is only required if Role-based Access Control is selected.

Excluded Roles

Listed as a Required Field - This field determines the role(s) who will not have access to this entitlement.

Action on this section is only required if Role-based Access Control is selected.

Priority

Orders this resource on the dashboard and requests tab. A priority of -1 gives it no special ordering. 1 is the top priority and is listed first.

Disable Certification/Extension

Disallows re-certification and extension of the granted entitlement.

May Not be Requested in UI

This prevents users from being able to request this particular entitlement.

Categories

Allows for categorization of the entitlements.

Note

If no Categories are present, select Create New and provide a Name and Description and set the Status to Active.

Grant Workflow

The Workflow Definition to use when the Entitlement is being granted.

Grant Workflow Form

If the Grant Workflow has forms defined, a form that should be used for the Entitlement grant process may be selected.

Revoke Workflow

The Workflow Definition to use when the Entitlement is being revoked. If not chosen, it defaults to the Grant Workflow.

Note

This option is not available for MULTI_UNBOUND Entitlements since those are not revocable.

Revoke Workflow Form

If the Revoke Workflow has forms defined, pick a form that should be used for the Entitlement revoke process.

Note

This option is not available for MULTI_UNBOUND Entitlements since those are not revocable.



Relationships

Displays any configured conflicts or dependencies. This section allows conflicts and dependencies to be defined or removed by dragging the elements to the desired sections.

Example

If Entitlement A is a dependency of Entitlement B, then you can only request Entitlement B if you have or are in the process of obtaining Entitlement A. In this situation, you would edit Entitlement B and add Entitlement A to its list of dependencies.

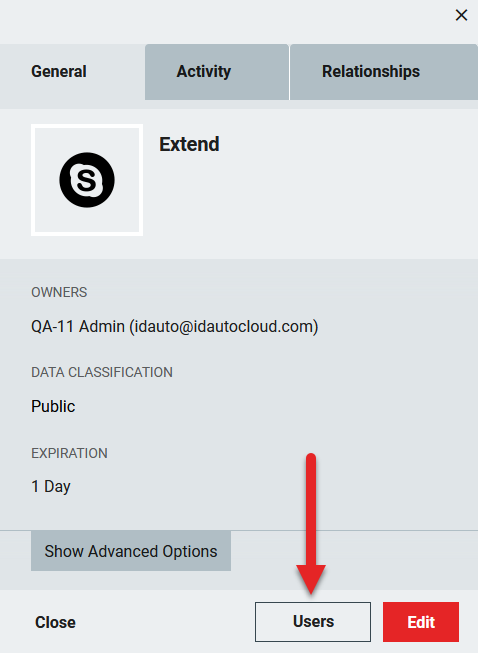

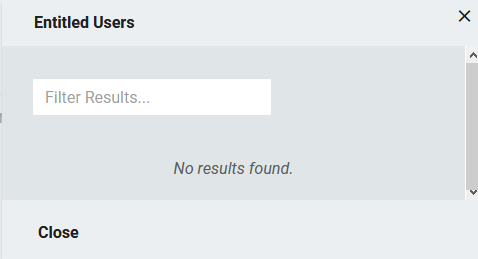

Entitled Users

Administrators and Entitlement owners can view users who are associated with the specified entitlement by clicking the Users button.


This allows the administrator or entitlement owner to view a list of entitled users for the selected entitlement. If no users are associated with the entitlement, the screen will display, "No results found."


If a user is not currently associated with an entitlement, the entitlement can be requested by clicking the Request button on the entitlement row in the list view, or on the card in the grid view.

If a user is not associated with any Entitlements, the screen will read "No Entitlements Found."

Add an Entitlement

Entitlements can be added from the Catalog interface. Follow these steps to add an entitlement.

  1. Select the Add Entitlement button located in the upper right portion of the window to create an entitlement.


  2. There will be two tabs: General and Relationships.

Add Entitlement - General Tab

The General tab allows Reports Admins to configure the settings that drive Entitlement permissions and define their workflows.System Roles Defined

Table 38. General Tab

Field Name

Description

Icon

Icon to associate with the entitlement when it is displayed in the UI. It can be uploaded from the user's local machine or selected from RapidIdentity's existing catalog of icons.

Name

Descriptive display name for the entitlement.

Description

A brief description can be entered for the entitlement, but is not required.

Owners

Displays the owner(s) of the entitlement.

Note

An entitlement owner is the primary contact for the entitlement and is responsible for Certification of entitlements or Extension of those that are about to expire. More than one entitlement owner can be assigned.

Data Classification

The Data Classification associated with the Entitlement. This serves as a label that describes the data associated with the entitlement.

Note

If no data classifications are present, select Create New and enter information for the Name, Description, Level, and Color fields.

Example:


Expiration

Defines when a granted entitlement will expire if not re-certified or extended by an Owner of the entitlement. To define the resource as never expiring, None can be selected.

Click the desired option and, if selecting days or date, click the listed value to configure.

Note

Options available to select from:

  • None

  • Time-based

  • Campaign-based

Time-based

If selected, the entitlement will expire in an indicated time (years, months, weeks, days, hours, minutes) from the time the entitlement is approved.

Note

The RapidIdentity jobs that run to expire entitlements run on a preset time interval. The exact time expected for an entitlement to expire may differ slightly from its actual expiration time.

Campaign-based

If selected, the entitlement expires on the selected date every year.

Binding

Number of instances per user allowed and whether they are bound, un-bound, single, or composite.

  • (SINGLE) One instance per user that can be requested, revoked, or can expire. A user can be associated to one instance of a single-bound entitlement at a given time and cannot request it again until it expires or is revoked.

    Example: Administrator Role, Help Desk Role, Access to Application, Splunk administrator for 4 hours

  • (MULTI_BOUND) Multiple instances per user. These are similar to single-bound entitlements, except the user can be associated to more than one multi-bound entitlement at any given time.

    Example: Scoped roles based on context Administrator for specific department

  • (MULTI_UNBOUND) Multiple instances per user that are not permanently tied to the user. These can be requested, but not revoked. Unbound entitlements are only associated with the user until the associated workflow completes.

    Example: Request log file, submit PTO request

  • (COMPOSITE) One instance per user. When a COMPOSITE entitlement is granted, associated entitlements will also be automatically requested for the user. The approver still has the option to Deny the associated entitlement request.

    Example: Grouping of Single Entitlement Bindings

Note

After selecting a binding, it is fixed. If an error occurs, the entitlement must be removed completely and the process to create a new entitlement must be reinitiated.

Status

Can be set to Active or Inactive.

Access Control

Required Field - Used to determine if attributes or roles will control access to the entitlement.

If set to Attribute-based, the Attribute ACL needs to be defined. This would be the list of attributes in which will be allowed access to the entitlement.

Note

This can be set to None.

Included Roles

Listed as a Required Field - This field determines the role(s) who will have access to this entitlement.

Action on this section is only required if Role-based Access Control is selected.

Excluded Roles

Listed as a Required Field - This field determines the role(s) who will not have access to this entitlement.

Action on this section is only required if Role-based Access Control is selected.

Priority

Orders this resource on the dashboard and requests tab. A priority of -1 gives it no special ordering. 1 is the top priority and is listed first.

Disable Certification/Extension

Disallows re-certification and extension of the granted entitlement.

May Not be Requested in UI

This prevents users from being able to request this particular entitlement.

Categories

Allows for categorization of the entitlements.

Note

If no Categories are present, select Create New and provide a Name and Description and set the Status to Active.

Grant Workflow

The Workflow Definition to use when the Entitlement is being granted.

Grant Workflow Form

If the Grant Workflow has forms defined, a form that should be used for the Entitlement grant process may be selected.

Revoke Workflow

The Workflow Definition to use when the Entitlement is being revoked. If not chosen, it defaults to the Grant Workflow.

Note

This option is not available for MULTI_UNBOUND Entitlements since those are not revocable.

Revoke Workflow Form

If the Revoke Workflow has forms defined, pick a form that should be used for the Entitlement revoke process.

Note

This option is not available for MULTI_UNBOUND Entitlements since those are not revocable.



Add Entitlement - Relationships Tab

This is where Requests Admins set up relationships between entitlements. To define whether another existing entitlement is a conflict or a dependency of the current entitlement being added, drag the chosen Available Entitlement to either the Conflicts or Dependencies column upon creation.

Note

If Entitlement A is a dependency of Entitlement B, then a user can only request Entitlement B if they have or are in the process of obtaining Entitlement A.

If Entitlement A is a conflict with Entitlement B, then a user with Entitlement A cannot be approved for Entitlement B, or vice versa.

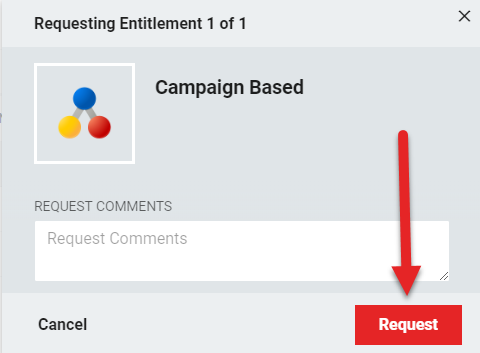

Request an Entitlement

Follow these two steps to request an entitlement.

  1. For an entitlement that has previously been requested, click the Request button on the entitlement row in the listed view (or card in the grid view). For new entitlements, select one or more entitlements from the catalog and click the Request button.


    Note

    Adding text and comments to the request is optional.

  2. Click Request.

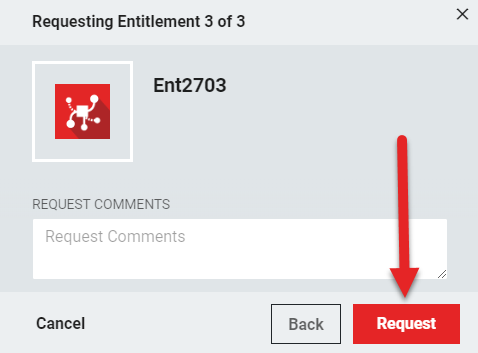

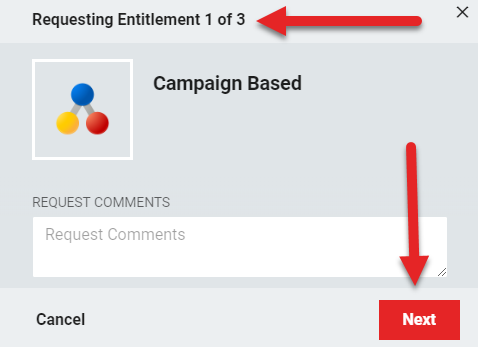

Requesting Multiple Entitlements

More than one entitlement can be requested at a time. Users can select multiple entitlements and click Request. The Request dialog allows each entitlement to be requested separately and users can optionally add comments to each request. The user will click Next until the last entitlement being requested is presented.


Then, click Request to complete the multiple entitlement request.
