RapidIdentity Cloud Product Guide

Studio OneRoster Manifest

The Studio OneRoster Manifest is a .csv file that is exported with other delimited text files to be pushed out, and represents the information behind delimited text applications.

The manifest consists of the resource types and populated fields that start with file to tell the system what information is coming in for a Studio CSV Consumer. For each included field, the options are as follows:Studio Consumer

  • Bulk - Creates new data within the system

  • Delta - Notes any changes in the data that is already in the system

    Note

    RapidIdentity Studio can not yet detect Delta changes, so it's important that the user populate those values appropriately.

  • Absent - There is no data available for this field

The individual fields are defined by the imported .csv and presented by RapidIdentity with the options above, but there are other options for this menu item that are static.

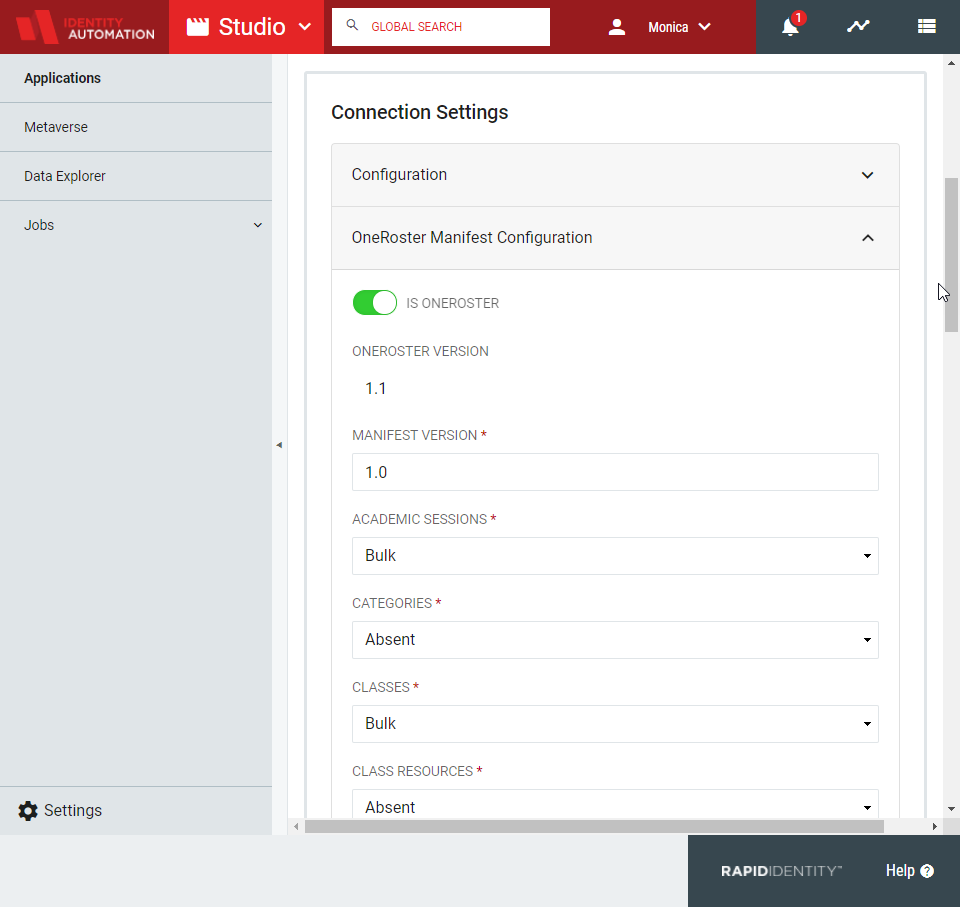

Table 330. OneRoster Table Options

Field

Description

Is OneRoster

Toggle this to enforce the OneRoster setting in RapidIdentity.

Note

When toggled off, data does not persist and will need to be reviewed when toggled back on. A .csv file would need to be configured in Record Definitions for this feature to be re-enabled.

OneRoster Version

The OneRoster version defaults to 1.1, but can be altered as needed by the user.

Note

Users are responsible for keeping track of the version being pushed.

Manifest Version

The Manifest version defaults to 1.0, but can be altered as needed by the user.

Note

Users are responsible for keeping track of the version being pushed.

Individual file Fields

These are the fields brought in from the .csv file configured in Record definitions. These resource types require the data statuses described above and include:

  • academicSessions

  • categories

  • classes

  • classResources

  • demographics

  • enrollments

  • lineItems

  • orgs

  • resources

  • results

Note

Before running a job for this consumer, verify that the fields listed are the same as they are within the .csv file.

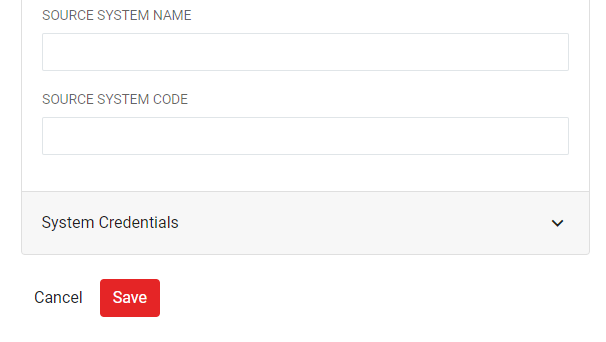

Source Fields

Source System Name and Source System Code can remain blank if there is no data in the manifest for these fields.
